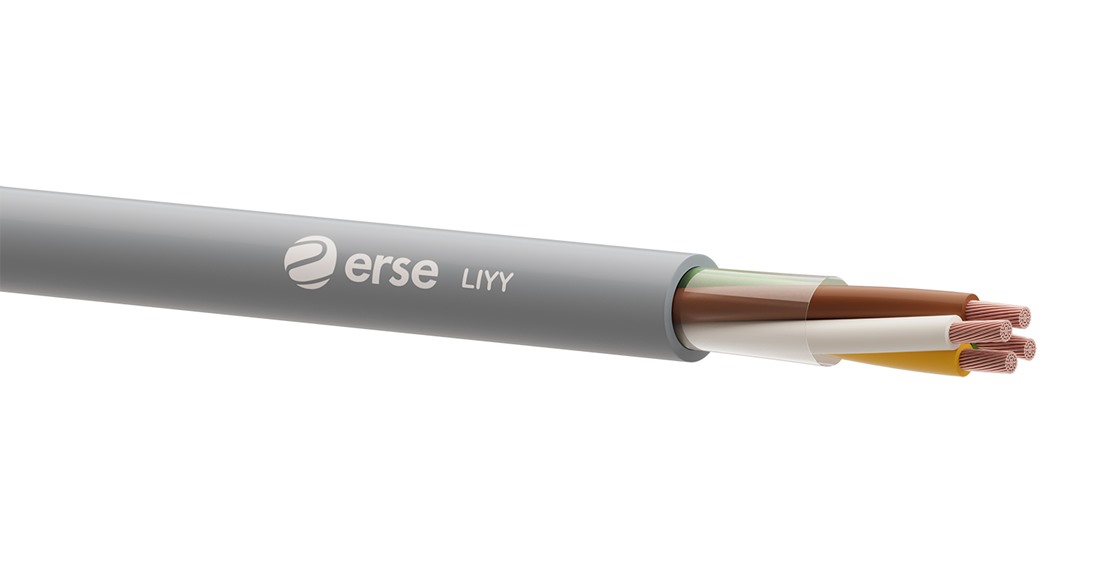

| İletken | EN 60228 Sınıf 5 Bükülü Elektrolitik Tavlı Bakır |
|---|---|
| Yalıtım | EN 50290-2-21 PVC Kompaund |
| Yalıtım Renk | DIN 47100 |
| Büküm | Uygun adımda katlar halinde |
| Ayırıcı Bant | Pes Bant |
| Kılıf | EN 50290-2-22 PVC Kompaund |
| Kılıf Rengi | RAL 7001 Gri |
| İLETKEN DİRENCİ (max.) | YALITIM DİRENCİ (min.) | EFEKTİF KAPASİTE (max.) | AKIM TAŞIMA KAPASİTESİ | ÇALIŞMA VOLTAJI | |||
|---|---|---|---|---|---|---|---|
| mm² 0,22 0,34 0,5 0,75 1 1,5 2,5 | Ω/km 89,8 56 39 26 19,5 13,3 7,98 | MΩxkm 200 | mm² 0,22 0,34 0,5 0,75 1 1,5 2,5 | pf/m 110 110 120 120 120 120 120 | mm² 0,22 0,34 0,5 0,75 1 1,5 2,5 | A 2,5 4,5 6 13 16 20 25 | 500 V |
| TEST VOLTAJI | BÜKÜLME YARIÇAPI | ÇALIŞMA SICAKLIĞI | ALEV GECİKTİRİCİLİK TESTİ |
|---|---|---|---|
| ≤ 1 mm² = 1200 V ≥1,5 mm² = 2500 V | 7,5x Cable Ø | Sabit -30˚C ~ +70˚C Hareketli -5˚C ~ +70˚C | EN 60332-1-2 |
| KOD NO | DAMAR SAYISI VE KESİTİ (mm²) | KABLO ÇAPI (mm) | BAKIR AĞIRLIĞI (kg/km) | YAKLAŞIK KABLO AĞIRLIĞI (kg/km) |
|---|---|---|---|---|
| MDER004100200022G | 2 x 0,22 | 3,6 | 4 | 16 |
| MDER004100300022G | 3 x 0,22 | 3,8 | 6 | 20 |
| MDER004100400022G | 4 x 0,22 | 4,1 | 8 | 25 |
| MDER004100500022G | 5 x 0,22 | 4,4 | 11 | 29 |
| MDER004100700022G | 7 x 0,22 | 4,8 | 15 | 37 |
| MDER004100200034G | 2 x 0,34 | 3,9 | 7 | 20 |
| MDER004100300034G | 3 x 0,34 | 4,1 | 10 | 25 |
| MDER004100400034G | 4 x 0,34 | 4,5 | 13 | 31 |
| MDER004100500034G | 5 x 0,34 | 4,8 | 16 | 38 |
| MDER004100700034G | 7 x 0,34 | 5,3 | 23 | 48 |
| MDER004100200050G | 2 x 0,50 | 4,7 | 10 | 28 |
| MDER004100300050G | 3 x 0,50 | 5 | 14 | 35 |
| MDER004100400050G | 4 x 0,50 | 5,4 | 19 | 43 |
| MDER004100500050G | 5 x 0,50 | 5,9 | 24 | 52 |
| MDER004100700050G | 7 x 0,50 | 6,4 | 34 | 67 |
| MDER004100200075G | 2 x 0,75 | 5,1 | 14 | 35 |
| MDER004100300075G | 3 x 0,75 | 5,4 | 22 | 44 |
| MDER004100400075G | 4 x 0,75 | 5,9 | 29 | 55 |
| MDER004100500075G | 5 x 0,75 | 6,4 | 36 | 67 |
| MDER004100700075G | 7 x 0,75 | 7 | 50 | 87 |
| MDER004100200100G | 2 x 1 | 5,5 | 19 | 43 |
| MDER004100300100G | 3 x 1 | 5,8 | 29 | 53 |
| MDER004100400100G | 4 x 1 | 6,4 | 38 | 76 |
| MDER004100500100G | 5 x 1 | 7 | 48 | 82 |
| MDER004100700100G | 7 x 1 | 7,6 | 67 | 107 |
| MDER004100200150G | 2 x 1,5 | 6,1 | 29 | 56 |
| MDER004100300150G | 3 x 1,5 | 6,7 | 43 | 72 |
| MDER004100400150G | 4 x 1,5 | 7,3 | 58 | 92 |
| MDER004100500150G | 5 x 1,5 | 8,1 | 72 | 113 |
| MDER004100700150G | 7 x 1,5 | 8,8 | 101 | 148 |
| MDER004100200250G | 2 x 2,5 | 7,1 | 48 | 78 |
| MDER004100300250G | 3 x 2,5 | 7,5 | 72 | 102 |
| MDER004100400250G | 4 x 2,5 | 8,9 | 96 | 131 |
| MDER004100500250G | 5 x 2,5 | 9,1 | 120 | 163 |
| MDER004100700250G | 7 x 2,5 | 10,2 | 168 | 222 |
